The VIAVI ALT-8000 is a lightweight, portable flight line test set for FMCW and pulse radio altimeters. Features Windows® interface, programmable profiles, and RF loop testing for full system verification.

ALT-8000

Test Equipment

Description

The VIAVI ALT-8000 Radalt Flight Line Test Set is a versatile and software-upgradable solution for testing and troubleshooting radio altimeter systems. Unlike other testers, the ALT-8000 verifies the entire system from antenna to cockpit indicator, replicating real in-flight conditions and isolating faulty components.

Its Windows®-based interface provides intuitive control and displays key parametric measurements such as TX power, TX frequency (center), sweep rate, and TX pulse width. The Profile page allows users to create, save, and execute multi-leg climb/descend profiles to simulate complete landing approaches or takeoff sequences.

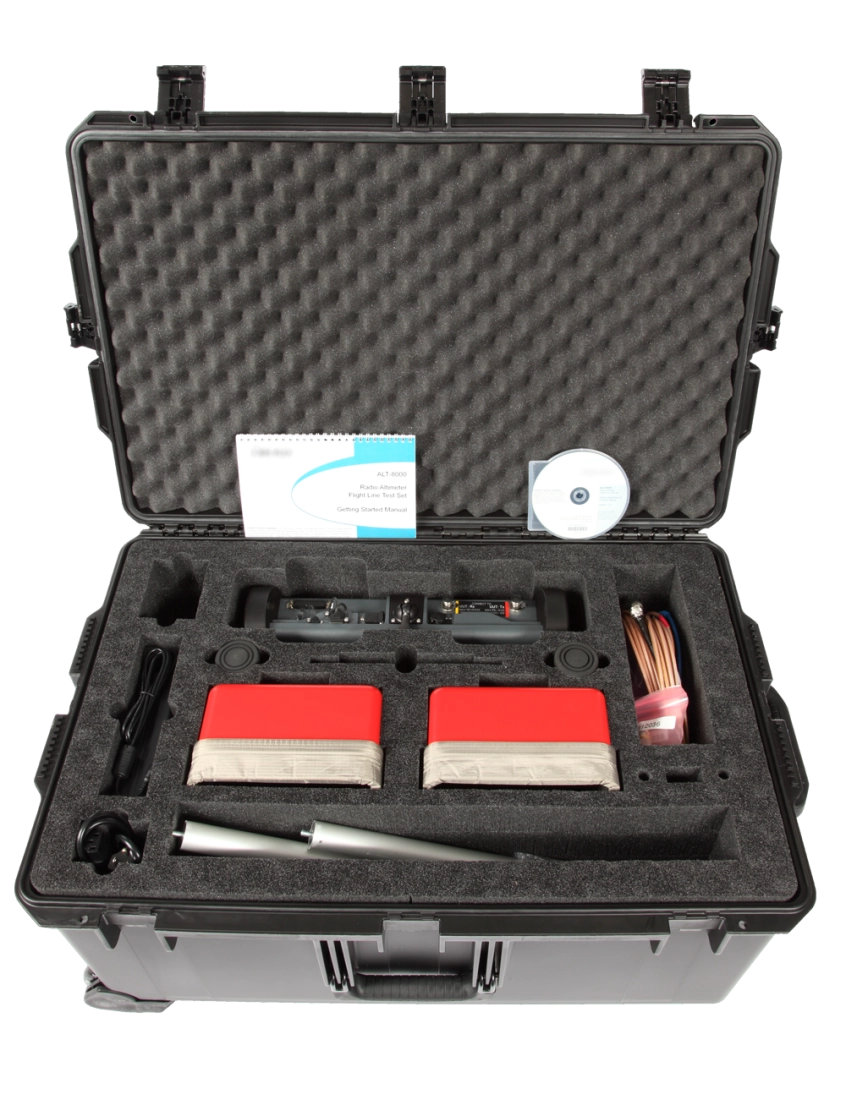

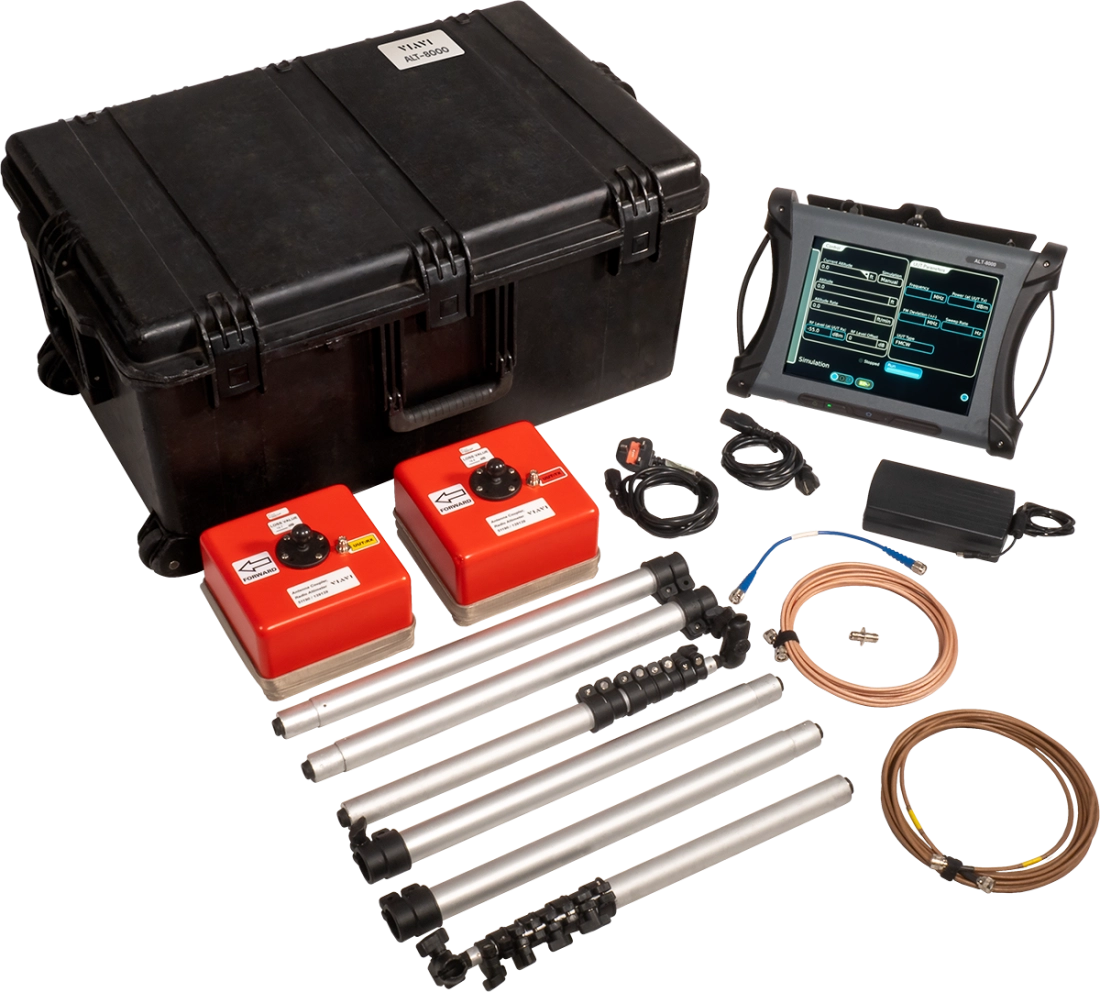

Supplied antenna couplers enable quick RF loop testing without direct access to LRU test ports, verifying TX frequency, power, sweep rate, and sensitivity. The ALT-8000 supports FMCW radio altimeters (including CDF types) and non-pulse compression pulse altimeters, making it ideal for a wide range of aircraft platforms.

Applications include Terrain Awareness Warning System (TAWS) installations, dynamic altitude simulations, and comprehensive troubleshooting for installed systems.

Features

  • Tests FMCW & Pulse Radio Altimeters – Including CDF types and non-pulse compression systems.
  • Full RF Loop Testing – Identifies TX, RX, antenna, or feeder faults.
  • Direct Connect or Antenna Couplers – Flexible testing options for installed systems.
  • Programmable Multi-Leg Profiles – Simulate landing approaches, flare-outs, and departures.
  • Windows®-Based Interface – Simple navigation with large touchscreen display.

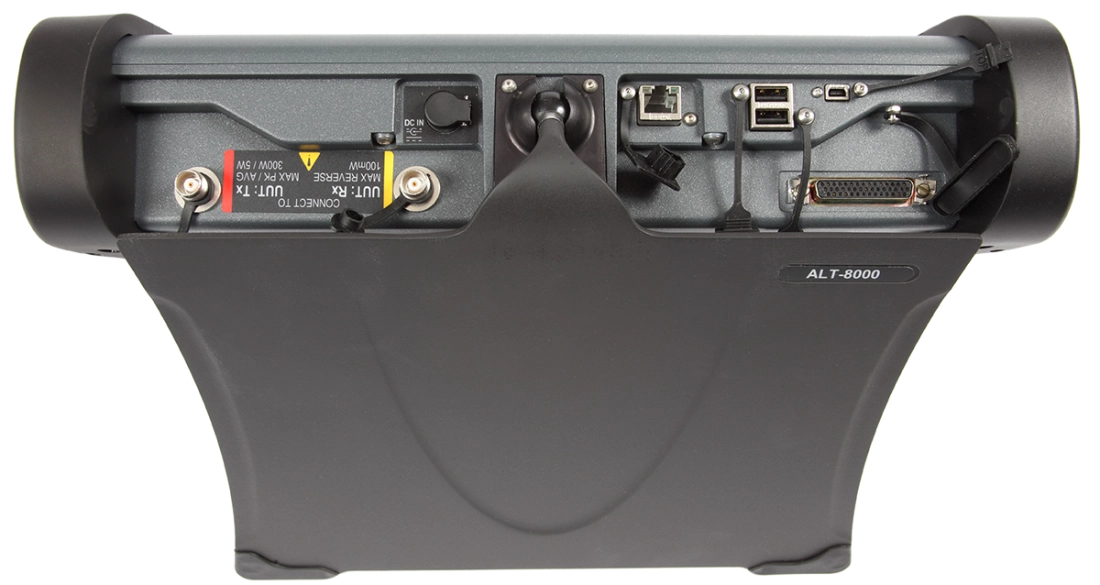

  • Remote Control Capability – USB and LAN interfaces for automated testing.
  • Lightweight & Portable – Weighs approximately 10 lbs (4.5 kg) for easy flight line use.
  • Battery Operation – Over 4 hours of runtime for field testing.
  • Software Upgradeable – Future-proof design for evolving avionics standards.
  • Applications – TAWS installations, dynamic altitude simulation, and in-flight condition replication.
