The VIAVI ALT-9000 is a portable, rugged radio altimeter test set that simulates altitude using true RF time delay and path loss models. Ideal for flight line and bench testing of all radio altimeter formats.

ALT-9000

Test Equipment

Description

The VIAVI ALT-9000 Radio Altimeter Test Set is designed for fast, accurate testing and troubleshooting of all types of radio altimeter systems, including Low Probability of Intercept (LPI), Combined Altitude Radar Altimeter (CARA), and next-generation variants. Using fiber optic delay line technology, the ALT-9000 provides altitude simulations with true RF time delay and path loss models, ensuring precise and reliable results.

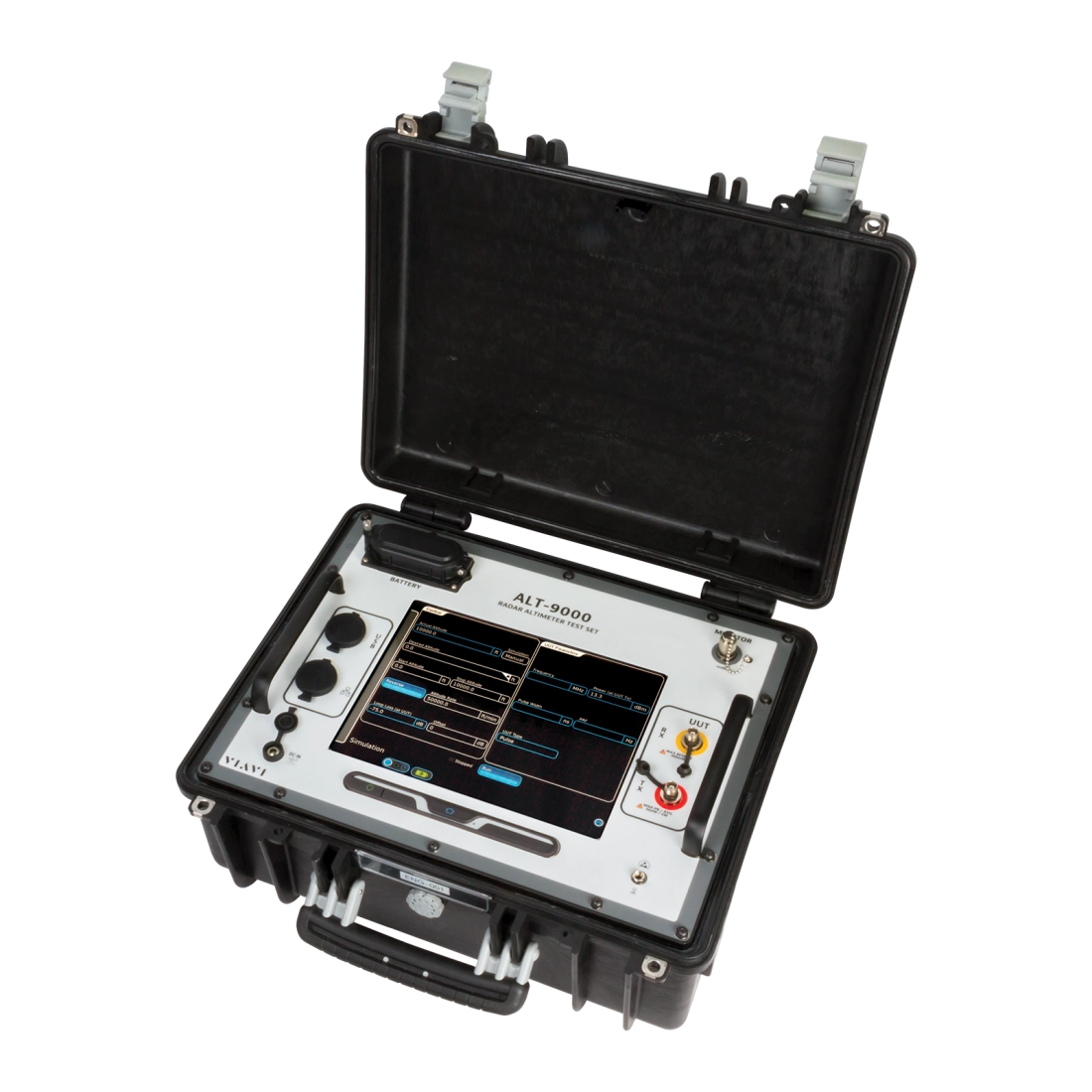

Its intuitive graphical touchscreen interface displays key parametric measurements such as TX Power, TX Frequency, FM Deviation, Sweep Rate, Pulse Width, and PRF. Built for portability and durability, the ALT-9000 is ideal for flight line or bench use and operates on battery power for maximum flexibility.

Additional capabilities include static altitude simulation from 5 ft to 10,000 ft in 5 ft increments, with extended range options up to 16,000 ft and 25,000 ft. The unit supports direct connection to UUT T/R or installed systems via antenna couplers, making it a versatile solution for avionics maintenance and certification.

Features

  • True RF Time Delay Simulation – Provides accurate altitude testing for all radio altimeter formats.
  • Supports LPI, CARA & Next-Gen Systems – Comprehensive compatibility for modern avionics.
  • Fiber Optic Delay Line Technology – Ensures precise altitude simulation.

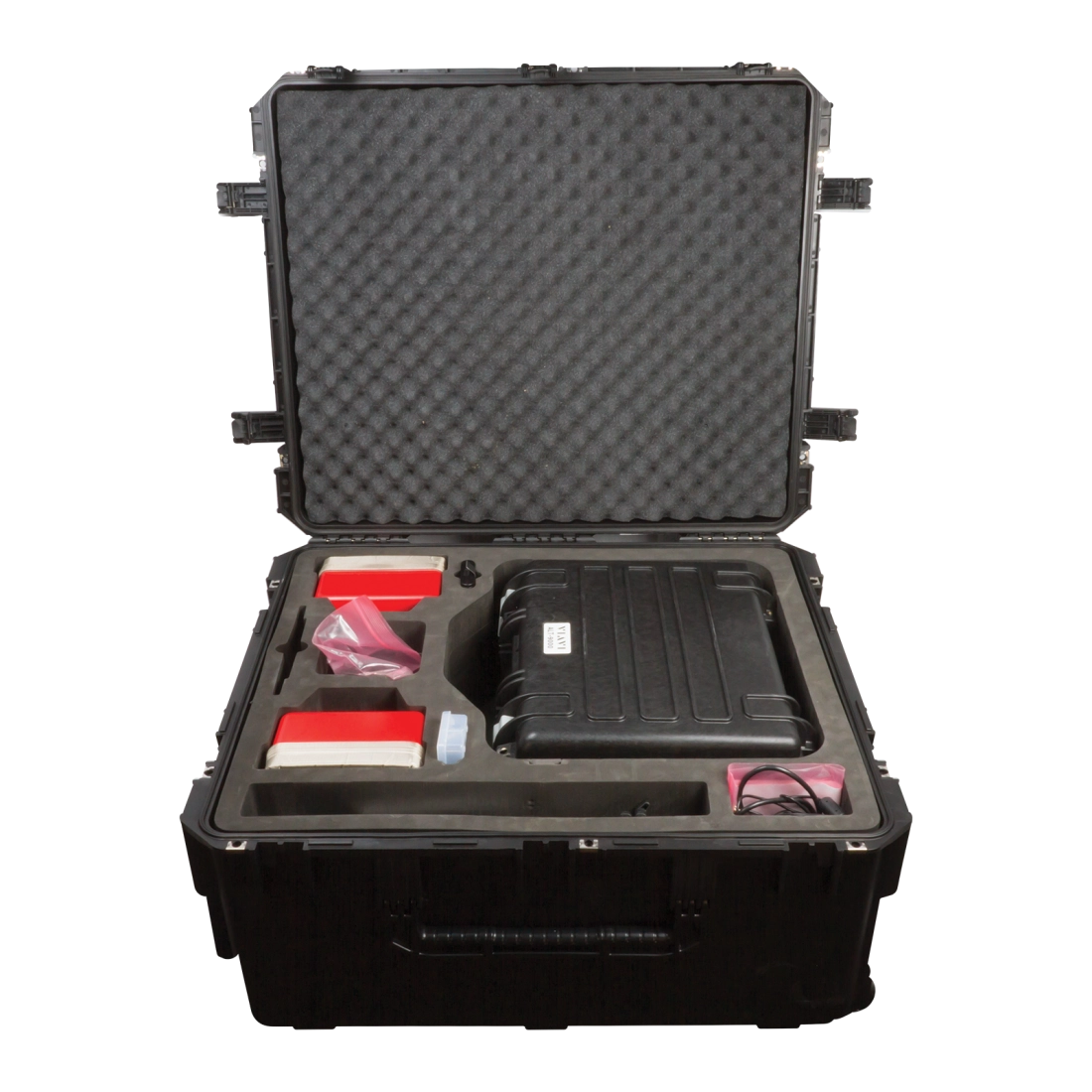

  • Portable & Rugged Design – Ideal for flight line and bench testing environments.
  • Battery Operated – Enables field use without external power.
  • Altitude Simulation Range – 5 ft to 10,000 ft in 5 ft increments; extended options up to 25,000 ft.
  • Touchscreen Interface – Displays TX Power, TX Frequency, FM Deviation, Sweep Rate, Pulse Width, and PRF.

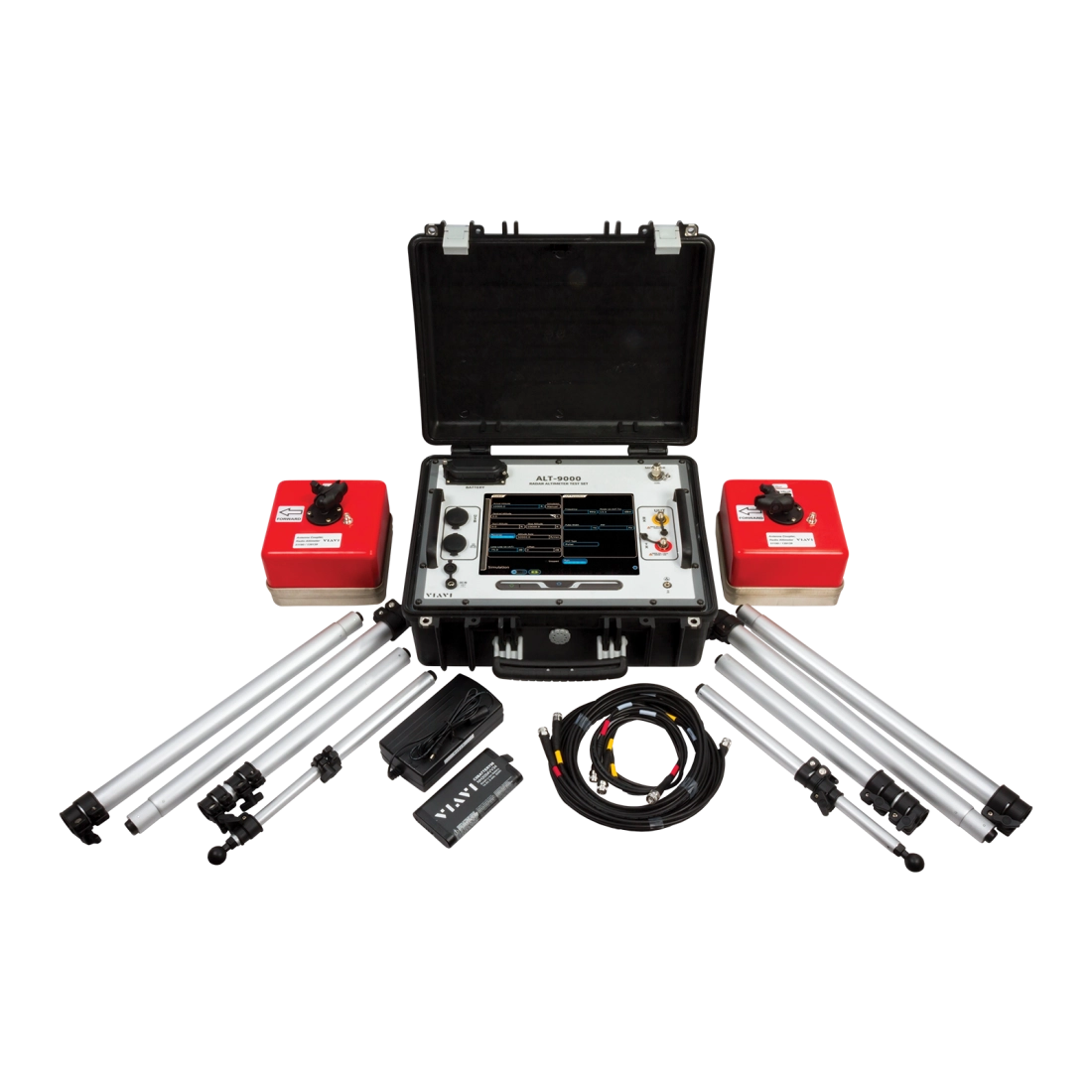

  • Direct Connection Capability – Connects to UUT T/R or installed systems via antenna couplers.
  • Power Level Offset – 20 dB adjustment from nominal loop loss value.
  • Extended Range Option – Simulate discrete altitudes for advanced testing scenarios.
