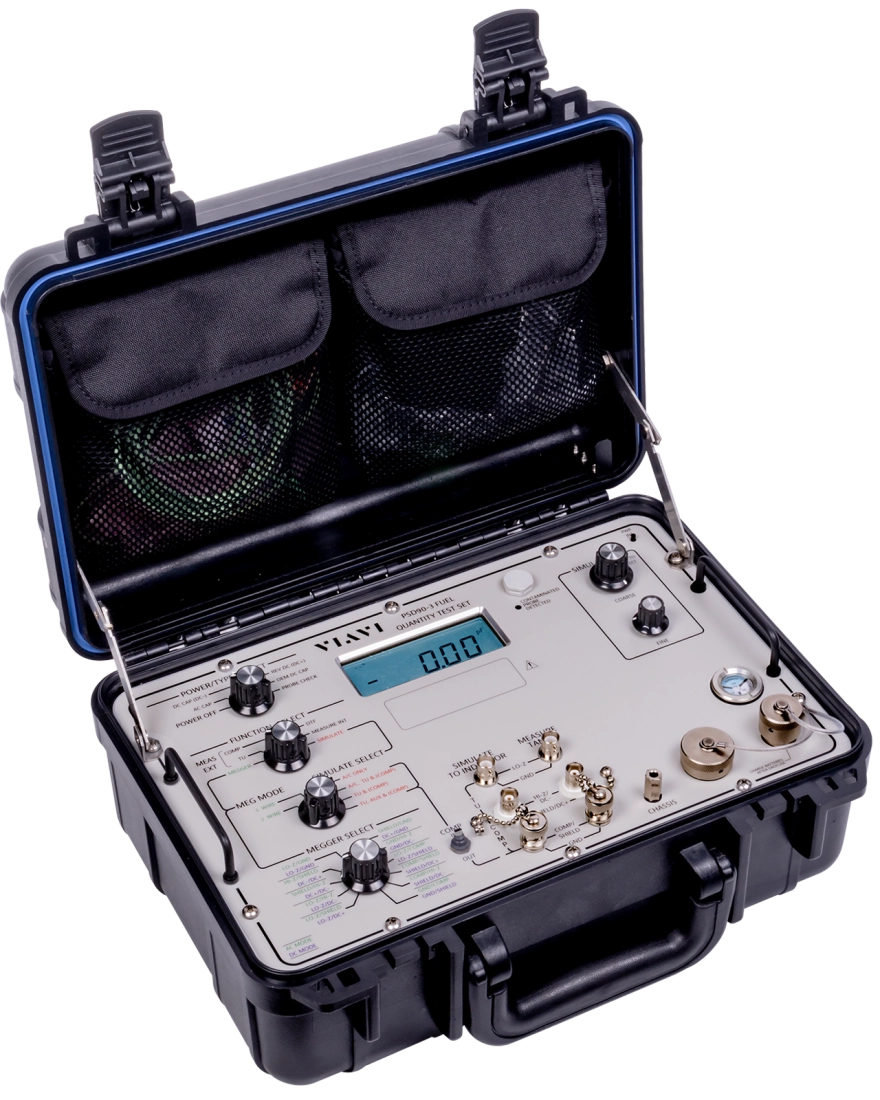

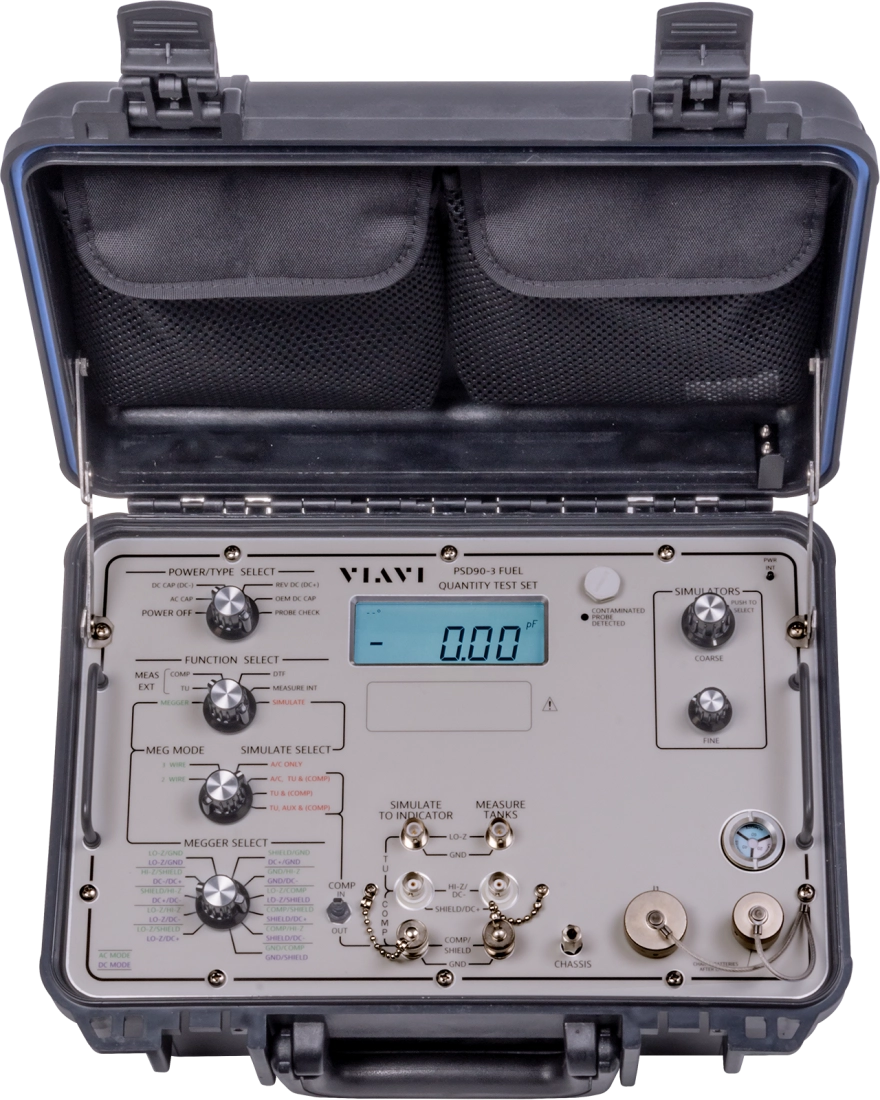

VIAVI PSD90-3 Fuel Quantity Test Set – AC/DC Capacitive Fuel, Water, LOX & Oil Systems

Description

The PSD90-3 Fuel System Tester is engineered for comprehensive testing of AC and DC capacitive fuel, water, liquid oxygen (LOX), and engine oil systems. When paired with an aircraft-specific interface, the PSD90-3 enables technicians to test, troubleshoot, and isolate fuel system issues, calibrate fuel quantity indicators, and detect contaminated fuel probes.
Developed for use in all environments, the PSD90-3 is perfect for flight line testing on battery power or bench testing with external power. Its innovative design provides two contamination detection methods—Auto and Manual—allowing users to identify fuel probe issues caused by particulates, water, microbial growth, or other contaminants. During normal capacitance measurements, the system automatically alerts the user via a Degree of Error display and a Contaminated Fuel Probe LED indicator. For manual verification, the Check Probe function allows user-defined Percent of Error limits, ensuring accurate contamination detection and enhanced safety.

Features

• Multi-System Testing – Supports AC/DC capacitive fuel, water, LOX, and engine oil systems.
• Advanced Contaminated Probe Detection – Auto and Manual modes for precise identification of probe contamination.
• Automatic Alerts – Degree of Error indication and LED warning for contaminated fuel probes.
• Manual Check Probe Function – User-selectable Percent of Error limit for contamination verification.
• Calibration Capability – Calibrates fuel quantity indicators for accurate readings.
• Portable & Versatile – Ideal for flight line battery-powered testing or bench testing with external power.
• Aircraft-Specific Interface Compatibility – Enables tailored testing for multiple aircraft platforms.
• Rugged Design – Built for reliable performance in demanding aviation environments.
